Bmc:

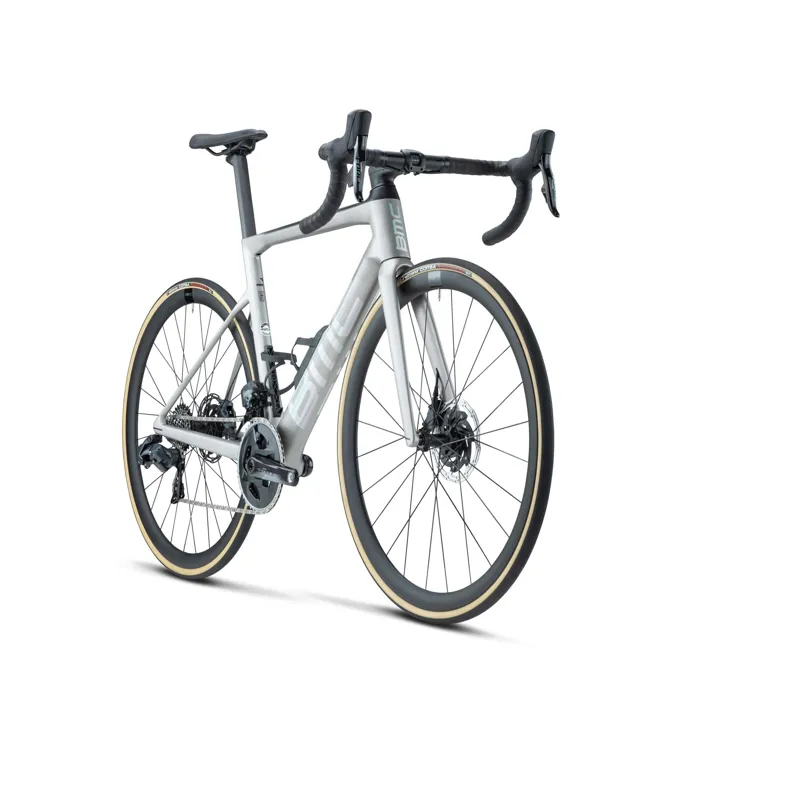

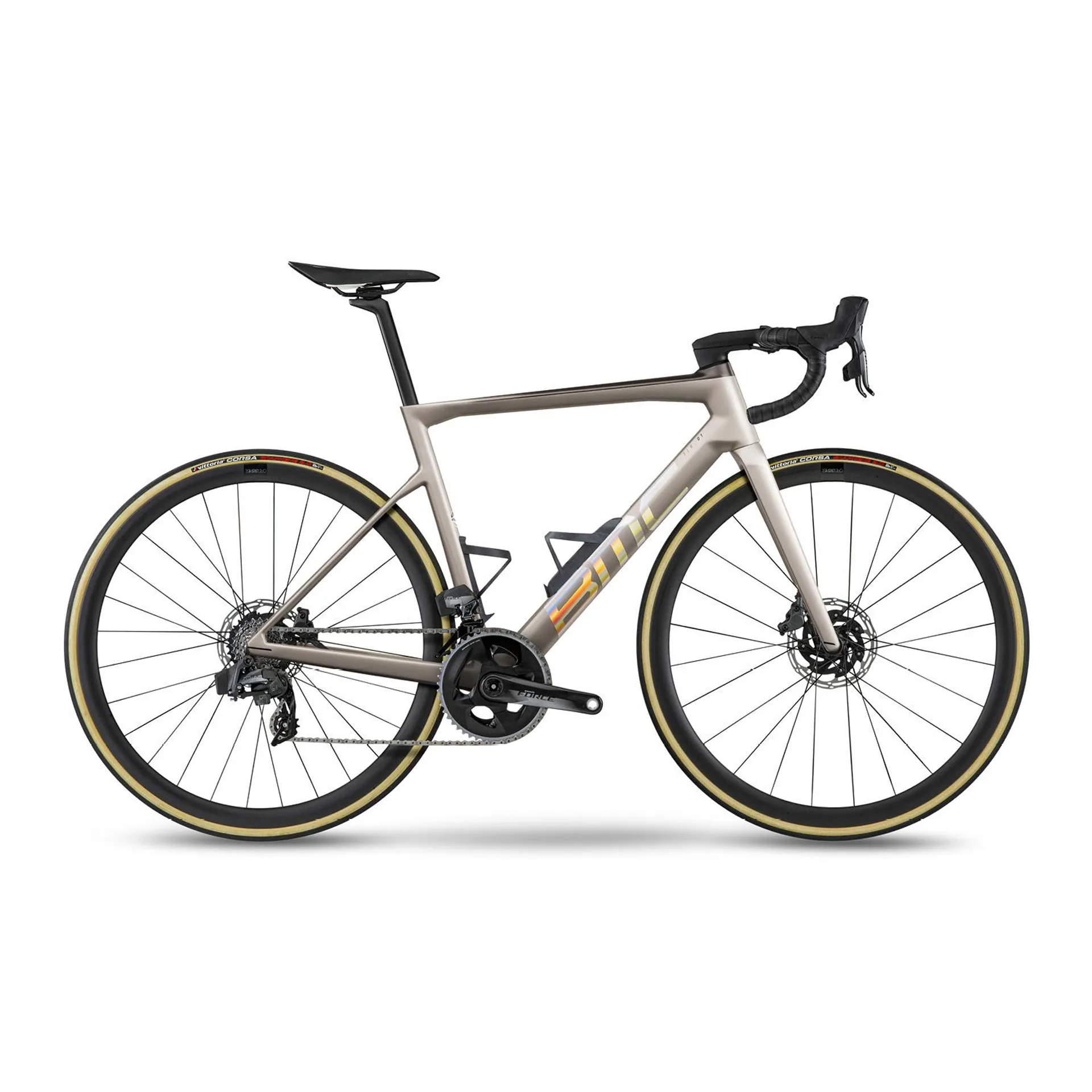

the original teammachine slr01 created the blueprint for the modern road bike. After more than a decade of obsessive innovation and development, today’s world-beating teammachine slr01 still leads where others follow. Its tcc race-engineered premium carbon frame includes the aerocore design system, ics technology and stealth cable routing. An ics2 stem and conventional bar, plus SRAM force etap axs 12-speed wireless groupset and 35mm crd-351 sl carbon tubeless-ready wheels complete a strong specification.
Accelerated composites evolution technology+ (ace+)
ace+ not only generates thousands of virtual frameset prototypes to satisfy stiffness, weight and compliance targets, but now also includes a forth key factor, aerodynamics.
Integrated cockpit system (ics2)
all-new ics2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
Aerocore design
our aerocore system consists of two superlight carbon cages that seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles.
D-shape seatpost
the new d-shape compliance post's carbon layup was designed using tcc endurance technology for tailored comfort.
Comfort is speed
the new teammachine slr is more compliant than ever, thanks to the latest evolution of the tun compliance concept (tcc) technology. Fine tuning of the carbon layups, essential vertical frame and seat post flex, to improve traction and control, resulting in reduced muscle fatigue.
Bottom bracket and torsional stiffness
renowned for its power transfer, the new teammachine slr goes one step further, with its new down tube shape and optimised carbon layup providing even greater bottom bracket shell support.
Fork profile
an aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
specifications
frame
teammachine slr 01 premium carbon with aerocore design
ics technology stealth cable routing
integrated aerocore bottle cages
stealth dropout design
tcc race compliance level
pf86 bottom bracket
flat mount disc
12x142mm thru-axle
fork
teammachine slr 01 premium carbon
ics technology stealth cable routing
tcc race compliance level
stealth dropout design
flat mount disc
12x100mm thru-axle
gears
2x12
chainwheel
sram force axs 48-35t
cassette
sram force xg-1270 10-28t
chain
sram force 12 speed
rear derailleur
sram force etap axs
shifters
sram force etap axs hrd
brakes
sram force etap axs hrd - centerline xr rotors (160/160)
handlebar
bmc rab 02 - ergo top shape - compact bend
stem
bmc ics2 - integrated cockpit design
seatpost
teammachine slr 01 premium carbon d-shaped seatpost
15mm offset
saddle
fizik argo vento r5 (140mm)
hubs
crd-351 sl
rims
crd-351 sl carbon - tubeless ready - 35mm
tires
vittoria corsa - 25mm
tire clearance
30mm (measured width)
extras
aerocore bottle cages
weight limit
110 kg
astm classification
level 1
