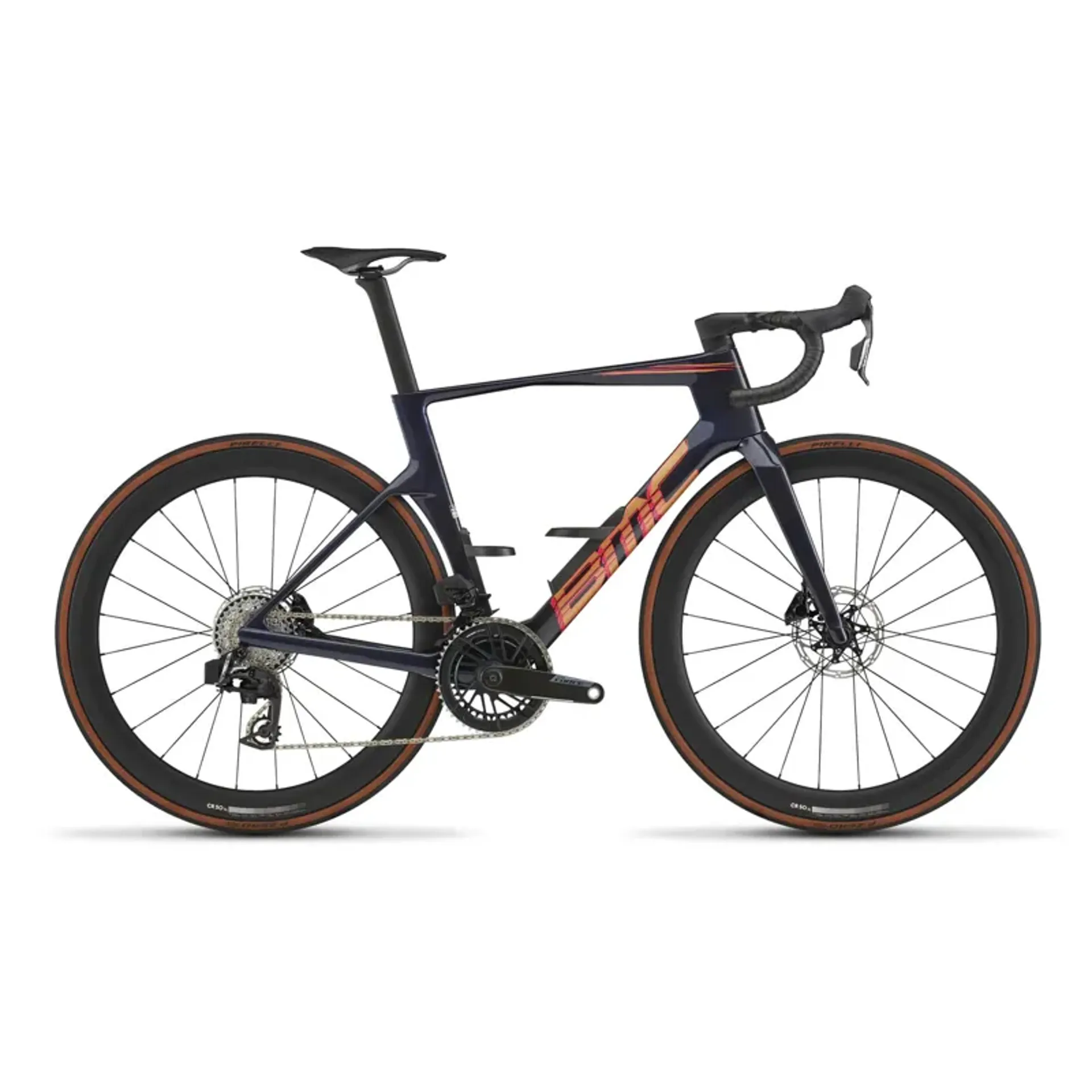

the teammachine r 01 three brings bmc’s dedicated aero race platform into a more accessible 01 premium carbon build, keeping the same speed-focused frame design and race-ready handling that define the teammachine r range. Developed with red bull advanced technologies, it is built to deliver aerodynamic efficiency, low weight and direct power transfer for riders who want a fast road bike that performs across climbs, descents, sprints and rolling terrain.
Its 01 premium carbon frameset uses bmc’s aerocore design, stealth cable routing and wide-stance halo fork to manage airflow as a complete system. The deep bottom bracket area supports stiffness and efficiency under hard efforts, while the all-aero carbon seatpost and integrated cockpit layout help maintain the clean, purposeful profile expected from bmc’s highest-level race bikes.
Finished with Shimano Ultegra di2, a 4iiii precision gen3+ non-drive-side power meter, ics carbon aero gen 2 cockpit and cr 50 sl carbon tubeless-ready wheels, the teammachine r 01 three delivers electronic shifting, integrated race fit and aerodynamic wheel performance in a high-end package built for fast road riding and decisive race efforts.
Features
• 01 premium carbon frame with aerocore design
• designed with red bull advanced technologies
• ics technology stealth cable routing
• halo fork with ultra-wide front-end design
• deep bottom bracket area for aerodynamic efficiency
• all-aero 01 premium carbon seatpost
• flat mount disc brake compatibility
• 12 x 142mm rear thru-axle
• 01 premium carbon fork with stealth dropout design
• one-piece ics carbon aero gen 2 full carbon cockpit
• Shimano Ultegra Di2 2 x 12-speed drivetrain
• 4iiii precision gen3+ non-drive-side power meter
• Shimano Ultegra hydraulic disc brakes
• cr 50 sl carbon tubeless-ready wheels
• pirelli p zero race tlr 28mm tubeless tyres
• aerocore bottle cages included
• high and low ics top cones and spacers included
specifications
frame: teammachine r 01, 01 premium carbon with aerocore design, ics technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 142mm thru-axle
fork: teammachine r 01, 01 premium carbon, ics technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
handlebar: ics carbon aero gen 2, one-piece full carbon cockpit, 135mm drop, 81mm reach, 12° flare
grips: bmc tacky 3mm
seatpost: teammachine r 01, 01 premium carbon seatpost
seatpost offset: 0mm for sizes 47–51, 10mm for sizes 54–61
saddle: selle italia slr boost, ti316 rail, 145mm
crankset: Shimano Ultegra fc-r8100
chainrings: 52-36t
power meter: 4iiii precision gen3+ power meter, non-drive side
cassette: Shimano Ultegra cs-r8101
cassette size: 11-34t
chain: Shimano cn-m8100
front derailleur: Shimano Ultegra Di2 fd-r8150
rear derailleur: Shimano Ultegra Di2 rd-r8150
shifters: Shimano Ultegra Di2 st-r8170
gears: 2 x 12
bottom bracket: Shimano Ultegra press-fit bottom bracket sm-bb72-41b
brake levers / calipers: Shimano Ultegra br-r8170
rotors: Shimano Ultegra rt-cl800
rotor size: 160 / 160mm
rims: cr 50 sl carbon, tubeless ready, 50mm
hubs: txc-812 and txc-240a center lock
tyres: pirelli p zero race tlr, tubeless, 28mm
tubeless information: tubeless rim and tubeless tyres
tyre clearance: 30mm measured tyre
weight without pedals: 7.6kg, size 54
astm classification: level 1
system weight limit: 110kg
in the box: aerocore bottle cages, high and low ics top cones, 3 x 10mm spacers, 2 x 3mm spacer
