Bmc:

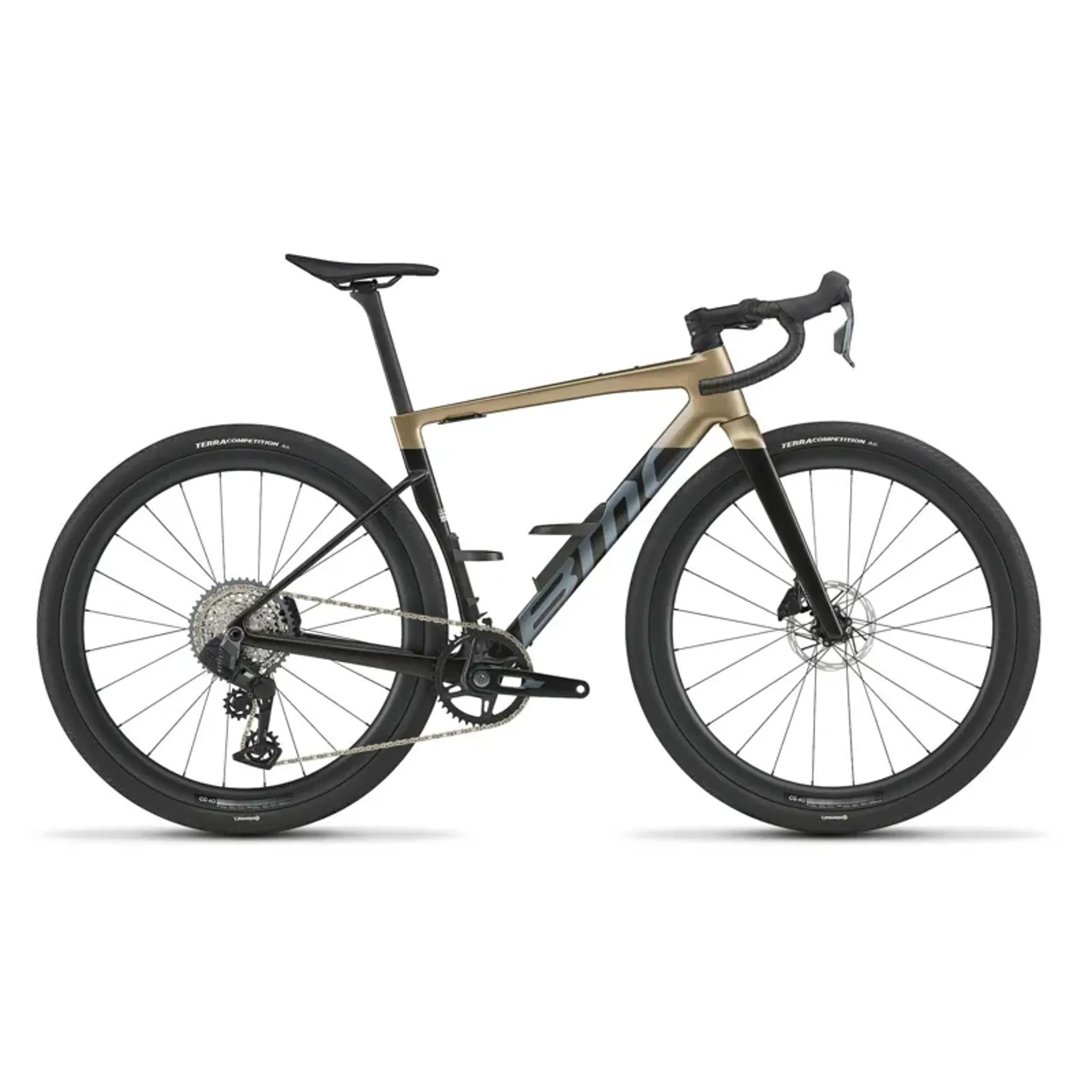

the kaius 01 three is built for fast gravel racing, combining bmc’s 01 premium carbon construction with race-optimised geometry and the integration expected from the kaius platform. Engineered by bmc’s impec lab, it is designed to balance stiffness, low weight and compliance, giving riders efficient power transfer, climbing performance and stability when the surface becomes loose or unpredictable.
Its gravel-specific geometry uses a longer reach to improve front-end stability and traction, helping the bike stay composed across fast gravel sectors, rough tracks and technical race conditions. Tuned compliance concept race technology helps smooth out rougher surfaces without taking away from the direct response needed for high-intensity efforts, while ics cable integration and aerocore design keep the frame clean and aerodynamically focused.
Finished with Shimano grx Di2 2 x 12-speed shifting, a 4iiii precision gen3+ non-drive-side power meter, bmc rsm 01 integrated stem and cg 40 sl carbon tubeless-ready wheels, the kaius 01 three delivers a race-ready gravel build with the control, gearing range and speed needed for tough terrain and long competitive efforts.
Features
• 01 premium carbon frame with aerocore design
• engineered by bmc’s impec lab
• ics technology stealth cable routing
• udh dropout
• tcc race compliance level
• flat mount disc brake compatibility
• 12 x 142mm rear thru-axle
• 01 premium carbon fork with stealth dropout design
• bmc rsm 01 integrated cockpit system stem
• alloy endurance handlebar with 12° flare
• gravel-specific race geometry
• Shimano grx Di2 2 x 12-speed drivetrain
• 4iiii precision gen3+ non-drive-side power meter
• Shimano grx hydraulic disc brakes
• cg 40 sl carbon tubeless-ready wheels
• pirelli cinturato gravel h 40mm tubeless tyres
• aerocore design carbon bottle cages included
specifications
frame: kaius 01 premium carbon with aerocore design, ics technology stealth cable routing, udh dropout, tcc race compliance level, flat mount disc, 12 x 142mm thru-axle
fork: kaius 01 premium carbon, ics technology stealth cable routing, tcc race compliance level, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
stem: bmc rsm 01, integrated cockpit system technology
handlebar: bmc hb d4 03, alloy 6061, endurance geometry, 125mm drop, 70mm reach, 12° flare
seatpost: kaius 01 premium carbon d-shaped seatpost, 15mm offset, d-fender compatible
saddle: fizik vento argo x3, kium rails, 140mm
crankset: Shimano grx fc-rx820-2
chainrings: 48-31t
power meter: 4iiii precision gen3+ power meter, non-drive side
cassette: Shimano Ultegra cs-r8101
cassette size: 11-34t
chain: Shimano cn-m8100
front derailleur: Shimano grx Di2 fd-rx825
rear derailleur: Shimano grx Di2 rd-rx825
shifters: Shimano grx Di2 st-rx825
gears: 2 x 12
bottom bracket: Shimano Ultegra press-fit bottom bracket sm-bb72-41b
brake levers / calipers: Shimano grx br-rx820
rotors: Shimano rt-cl800, centerlock
rotor size: 160 / 160mm
rims: cg 40 sl carbon, tubeless ready, 40mm
hubs: cg 40 sl
tyres: pirelli cinturato gravel h, 40mm
tubeless information: tubeless rim and tubeless tyres
tyre clearance: 44mm measured tyre
weight without pedals: 8.3kg, size 54
astm classification: level 2
system weight limit: 120kg
in the box: aerocore design carbon bottle cages
