Bmc:

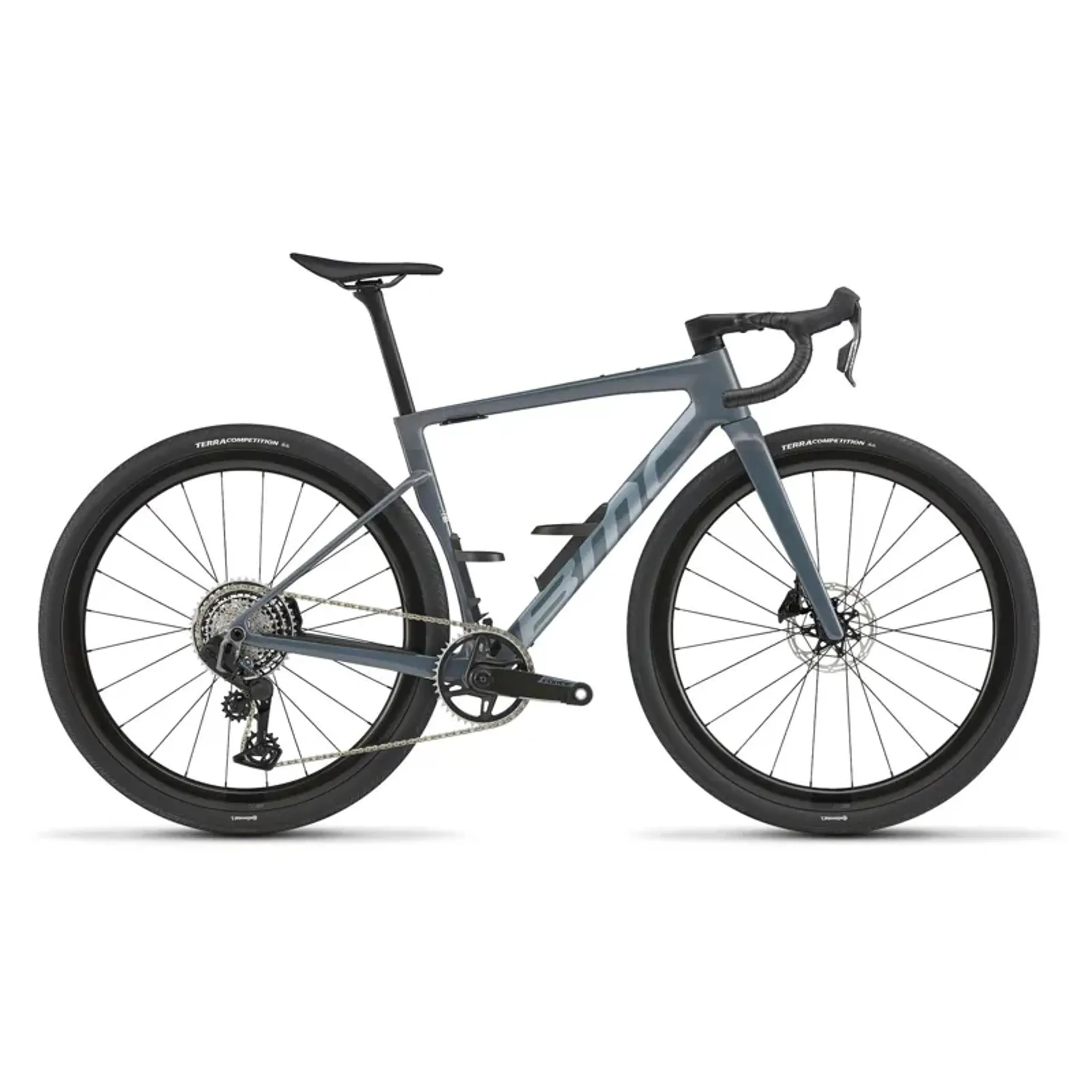

the bmc kaius 01 two is a pure gravel race bike built for riders who want speed, control and efficiency across fast, unpredictable off-road terrain. Its 01 premium carbon frame combines aerocore design, ics technology stealth cable routing and tcc race compliance, with refined geometry designed to deliver stability at speed and confidence over broken ground.
The gen 2 platform delivers a claimed 7% aerodynamic gain at 40 km/h, with 52mm measured tyre clearance, a next-generation ics carbon aero cockpit and cg 39 carbon tubeless-ready wheels. A SRAM force xplr axs 1x13 drivetrain with full-mount rear derailleur and single-sided power meter completes the race-focused gravel specification.
Features
• 01 premium carbon frame with aerocore design
• ics technology stealth cable routing
• tcc race compliance level
• race-ready geometry for gravel racing
• claimed 7% aerodynamic gain at 40 km/h
• SRAM force xplr axs 1x13 drivetrain
• SRAM force xplr axs single-sided power meter
• ics carbon aero gen 2 one-piece full carbon cockpit
• cg 39 carbon tubeless-ready wheels
• continental terra competition race rapid 45mm tubeless tyres
• 52mm measured tyre clearance
• aerocore bottle cages and computer mount included
specifications
frame: kaius 01 gen 2, 01 premium carbon with aerocore design, ics technology stealth cable routing, full mount udh, tcc race compliance level, flat mount disc, 12 x 142mm thru-axle
fork: kaius 01 gen 2, 01 premium carbon, ics technology stealth cable routing, tcc race compliance level, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
handlebar: ics carbon aero gen 2, one-piece full carbon cockpit, 135mm drop, 81mm reach, 12° flare
grips: bmc tacky 3mm
seatpost: teammachine slr 01 gen 5, 01 premium carbon aero shaped seatpost, 0mm offset size 47-51 and 10mm offset size 54-61
saddle: fizik vento argo x3, kium rails, 140mm
crankset: SRAM force axs wide fc-frc-1wp-e1
chainrings: 42t
power meter: SRAM force xplr axs power meter, single side
cassette: SRAM force xplr cs-xg-1371-e1
cassette size: 10-46t
chain: SRAM force cn-frc-e1
rear derailleur: SRAM force xplr axs rd-frc-1e-e1
shifters: SRAM force axs ed-frc-e1
gears: 1 x 13
bottom bracket: SRAM dub t47 85.5 road wide bottom bracket bb-dub-t47-a1
brake levers / calipers: SRAM force axs ed-frc-e1
rotors: SRAM centerline x rotor rt-cln-x-a2
rotor size: 160 / 160mm
rims: cg 39 carbon, tubeless ready, 39mm
hubs: cg 39, star ratchet system, straightpull design, center lock
tyres: continental terra competition race rapid, tubeless, 45mm
tubeless information: tubeless rim, tubeless tyres
in the box: aerocore bottle cages, computer mount for garmin, wahoo and gopro mount
tyre clearance: 52mm measured tyre
weight without pedals: 7.8kg, size 54
astm classification: level 2
system weight limit: 120kg
