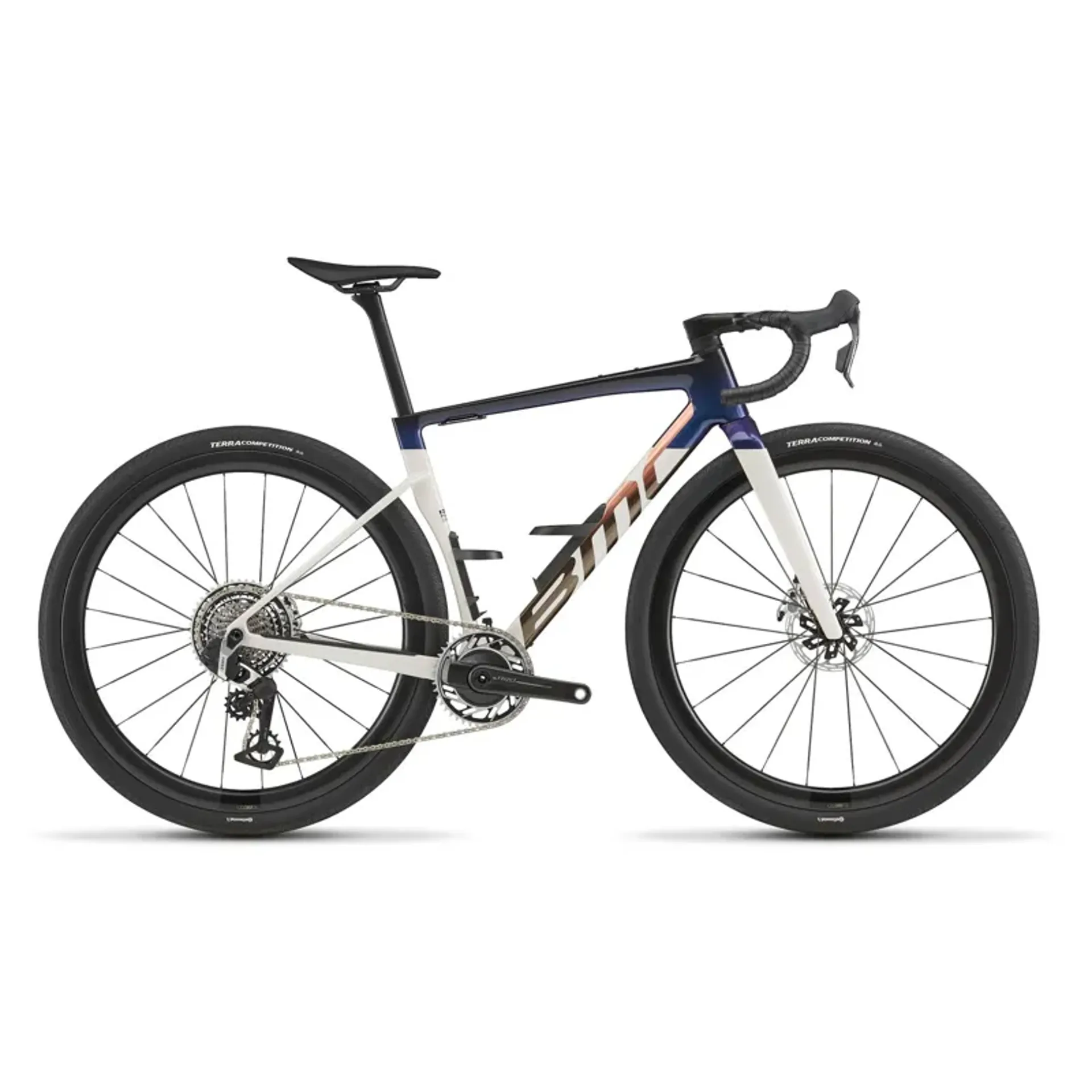

the bmc kaius 01 one is a pure gravel race bike built for riders who want maximum speed and control across fast, unpredictable off-road terrain. Its 01 premium carbon frame combines aerocore design, ics technology stealth cable routing and tcc race compliance, with refined geometry designed to keep the bike responsive under power and stable when the surface becomes rough.
The gen 2 platform delivers a claimed 7% aerodynamic gain at 40 km/h, with 52mm measured tyre clearance, a next-generation ics carbon aero cockpit and cg 39 sl carbon tubeless-ready wheels. A SRAM red xplr axs 1x13 drivetrain with direct-mount rear derailleur and power meter completes the race-focused gravel specification.
Features
• 01 premium carbon frame with aerocore design
• ics technology stealth cable routing
• tcc race compliance level
• race-ready geometry for gravel racing
• claimed 7% aerodynamic gain at 40 km/h
• SRAM red xplr axs 1x13 drivetrain
• SRAM red xplr axs power meter
• ics carbon aero gen 2 one-piece full carbon cockpit
• cg 39 sl carbon tubeless-ready wheels
• continental terra competition race rapid 45mm tubeless tyres
• 52mm measured tyre clearance
• aerocore bottle cages and computer mount included
specifications
frame: kaius 01 gen 2, 01 premium carbon with aerocore design, ics technology stealth cable routing, full mount udh, tcc race compliance level, flat mount disc, 12 x 142mm thru-axle
fork: kaius 01 gen 2, 01 premium carbon, ics technology stealth cable routing, tcc race compliance level, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
handlebar: ics carbon aero gen 2, one-piece full carbon cockpit, 135mm drop, 81mm reach, 12° flare
grips: bmc tacky 3mm
seatpost: teammachine slr 01 gen 5, 01 premium carbon aero shaped seatpost, 0mm offset size 47-51 and 10mm offset size 54-61
saddle: fizik vento argo x1 carbon, 140mm
crankset: SRAM red xplr axs wide fc-red-1wp-e1
chainrings: 42t
power meter: SRAM red xplr axs power meter fc-red-1wp-e1
cassette: SRAM red xplr cs-xg-1391-e1
cassette size: 10-46t
chain: SRAM red cn-red-e1
rear derailleur: SRAM red xplr axs rd-red-1e-e1
shifters: SRAM red axs ed-red-e1
gears: 1 x 13
bottom bracket: SRAM dub t47 85.5 road wide bottom bracket bb-dub-t47-a1
brake levers / calipers: SRAM red axs ed-red-e1
rotors: SRAM paceline x rotor rt-pln-x-a1
rotor size: 160 / 160mm
rims: cg 39 sl carbon, tubeless ready, 39mm
hubs: cg 39 sl for carbon spokes, star ratchet freehub, center lock
tyres: continental terra competition race rapid, tubeless, 45mm
tubeless information: tubeless rim, tubeless tyres
in the box: aerocore bottle cages, computer mount for garmin, wahoo and gopro mount
tyre clearance: 52mm measured tyre
weight without pedals: 7.1kg, size 54
astm classification: level 2
system weight limit: 120kg
